Mineral Water (Pure Water ) filling machine

Mineral Water (Pure Water ) filling machine

This CGF Washing-Filling-Capping 3-in-1 Unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage machinery can complete all processes such as bottle washing, filling and sealing, it can reduce the material and outsider contact time, improve sanitary conditions, production capacity and economic efficiency. Complete bottled mineral water/purified water production line filling operation used in beverages. Bottle washing, filling and sealing three functions are composed in one body of the machine. The whole process is automatic.

Product Details

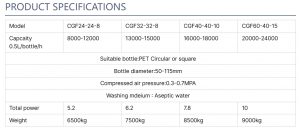

PRODUCT SPECIFICATIONS
Model CGF24-24-8 CGF32-32-8 CGF40-40-10 CGF60-40-15
Capcaity

0.5L/bottle/h

8000-12000 13000-15000 16000-18000 20000-24000
Suitable Bottle:PET Circular or Square
Bottle Diameter:50-115mm
Compressed Air Pressure:0.3-0.7Mpa
Washing Mdeium:Aseptic Water
Total Power 5.2 6.2 7.8 10
Weight 6500kg 7500kg 8500kg 9000kg

Features
